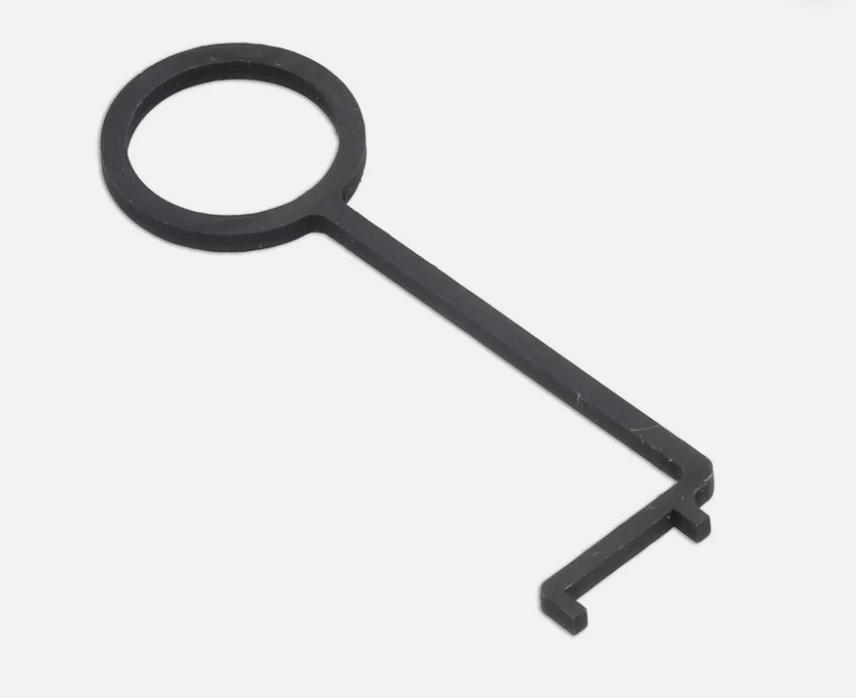

A specialised gauge for checking the timing belt tension to be checked on Citroen / PSA 1.2L EB2 wet belt petrol engines.
Remove the camshaft cover, then place the gauge across the width of the belt. If the gauge does not sit comfortably on the belt, then the belt has swollen / must be replaced.
- OEM equiv: G-0109-6 (EN-52809)
G-0109-6
PSA Timing Kit | EB2 Engine
A specialised timing kit for locking camshafts in their timed position on late model EB2 turbo charged engines. These engines have a camshaft alignment feature which allows access through the top by removing the plastic cam cover.
Includes belt gauge to check for timing belt tension and condition. This suits both EB0 1.0L and EB2 1.2L 3 cylinder wet belt engines.
- Engine: EB2 1.2L
- Applications: Citroen C3 | C4 Cactus | DS3, Peugeot 208 | 308 | 2008 | Partner
- OEM Equiv: 0109 2B | 0109-2C | 0109-2D | G-0109-6
| SKU | TT1096 |
| Barcode # | 9321280422582 |
| Brand | Automotive |
| Vehicle Make | PSA |
12 Months
