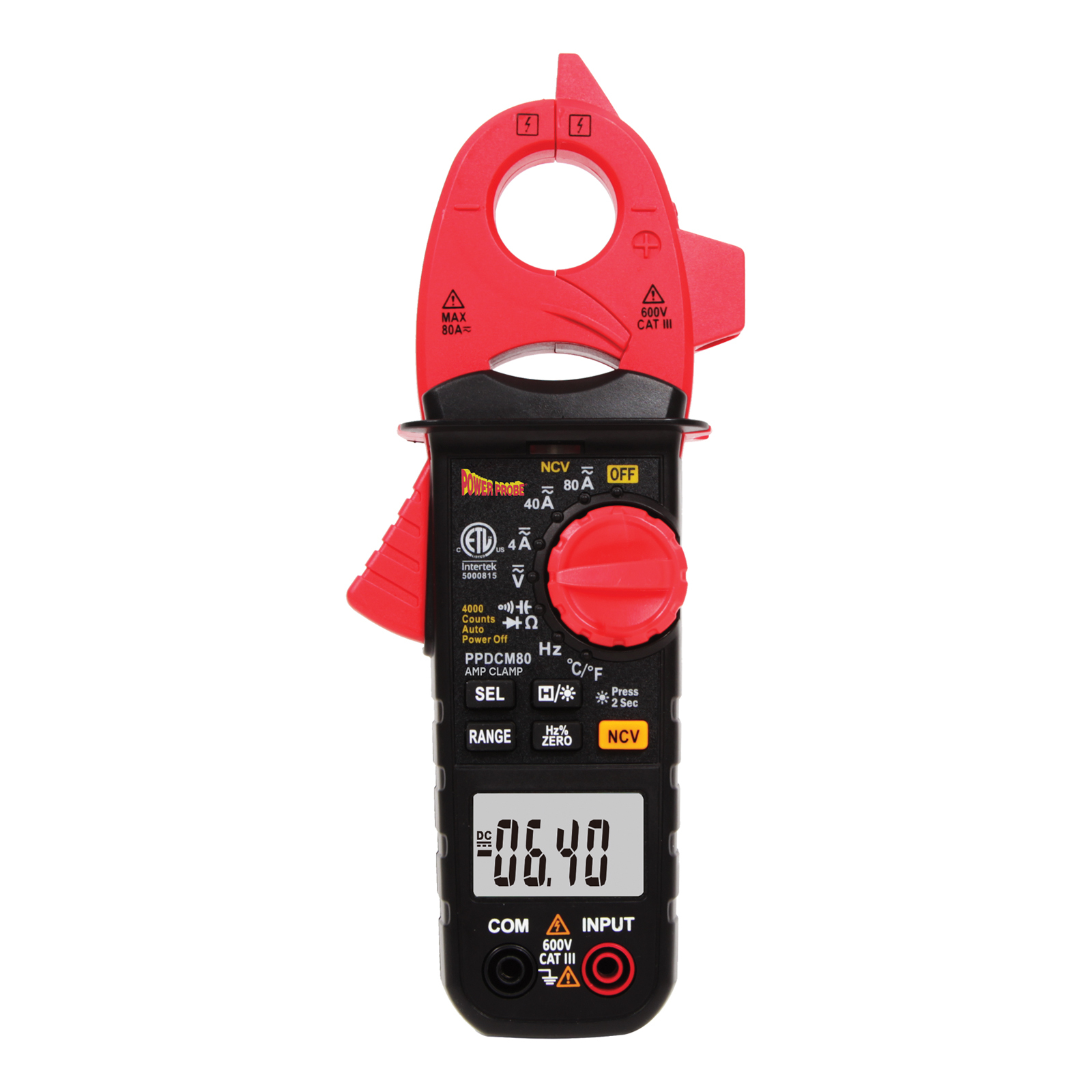

Power Probe Digital Clamp Meter
CAT III 600V
SKU: ETDPPDCM80
The Power Probe Digital Clamp Meter is an 80 Amp, auto-ranging clamp meter designed specifically for the automotive technician. This meter is rated CAT III 600V and can measure Volts, Amps, Ohms, Frequency and Temperature, necessary for automotive electrical testing. This meter's diagnostic applications include (but are not limited to) Parasitic Draw, Crank Current testing and HVAC Temperature testing.
Supplied with 3x AAA batteries.
- Voltage: AC 600V | DC 600V
- Current: AC 80A | DC 80A
- Display 4000 counts
- Jaw Opening 24mm/0.9"
- Auto & Manual Ranging
- Auto Power Off / Non-Contact Voltage Detector
- Diode Open Voltage 3.2V
- Continuity Buzzer <50
- Data Hold
- Large LCD Display Backlight
- Work Light
- Low Battery Display
| SKU | ETDPPDCM80 |
| Barcode # | 9321280421554 |
| Brand | Power Probe |
| Product weight | 0.5100kg |
| Shipping weight | 0.510000kg |
12 Months
