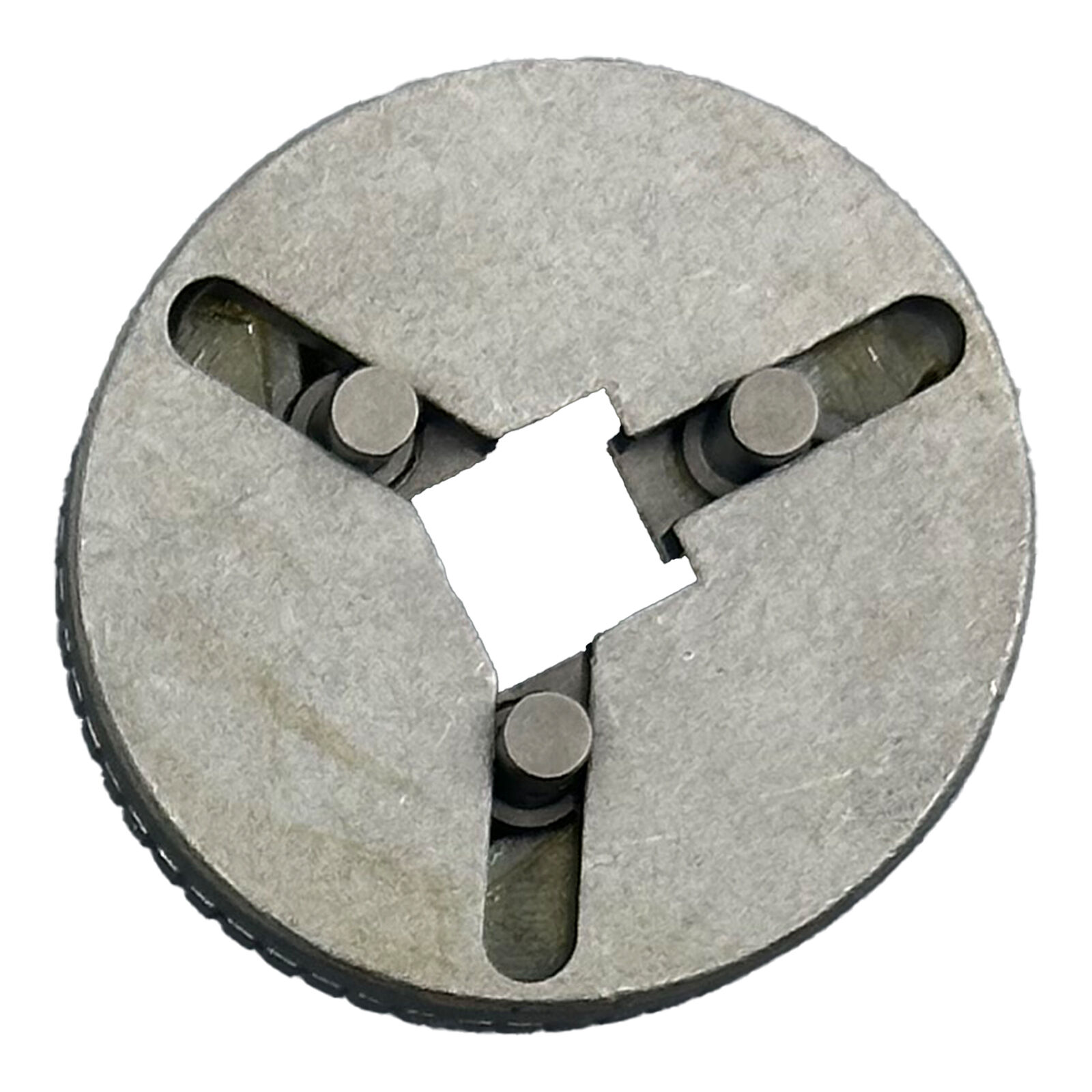

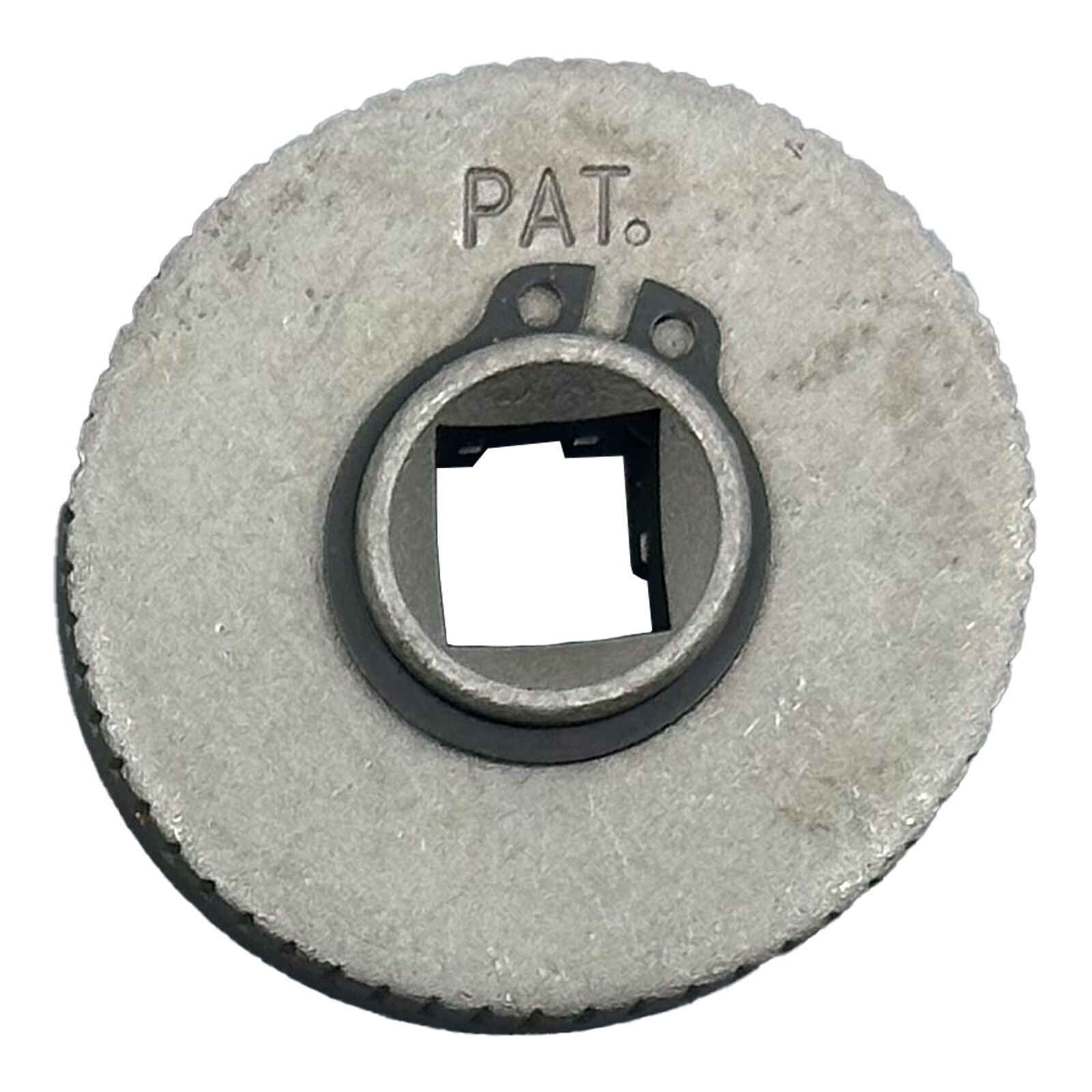

Specialised 3 pin piston wind back adaptor for servicing rear brake calipers on vehicles with electronic park brakes.

Electronic park brake mechanisms generally need to be retracted using a scan tool. Once this has been done, this tool is used to reset the caliper pistons to allow new pads to be fitted. The adaptor is designed to be used with a standard windback tool.

• Applications: Renault, Volvo, VAG
• Use with 2 pin windback tool, or 3/8" Sq Drv tool
• 39mm OD | 32mm PCD | 3mm Pin dia

This rewind tool has a powerful internal spring which applies firm pressure to the piston to ensure piston mechanism is wound back as you turn the handle.

The adjustable adaptors provide almost universal application. Suitable for both left and right hand thread brake calipers and two / three pin brake caliper pistons.

• Main body: 100mm
• T-Bar (100mm) / Reaction plate.
• Magnetic 2 pin adaptor (4mm pin dia / 25mm) - fits any standard rewind adaptor.
• Adjustable 2 pin (4mm pin dia / 23-27mm) - for electronic park brakes
• Adjustable 3 pin (4mm pin dia / 22-33mm) - for common brake caliper applications

Professional quality multimeter with oscilloscope functions

Fast A/D converting sampling time, built in data logging, and trend capture.

Bluetooth enabled, with App.

IP67 rated.

• 20MHz / 50MS/s bandwidth / real time sampling rate
• 320 x 240 px TFT colour LCD display
• CATIII 1000V / CATIV 600V
• Rechargeable battery

• Adaptor (1/4" Hex Sq Drv)
• For 1/4" hex insert bits
