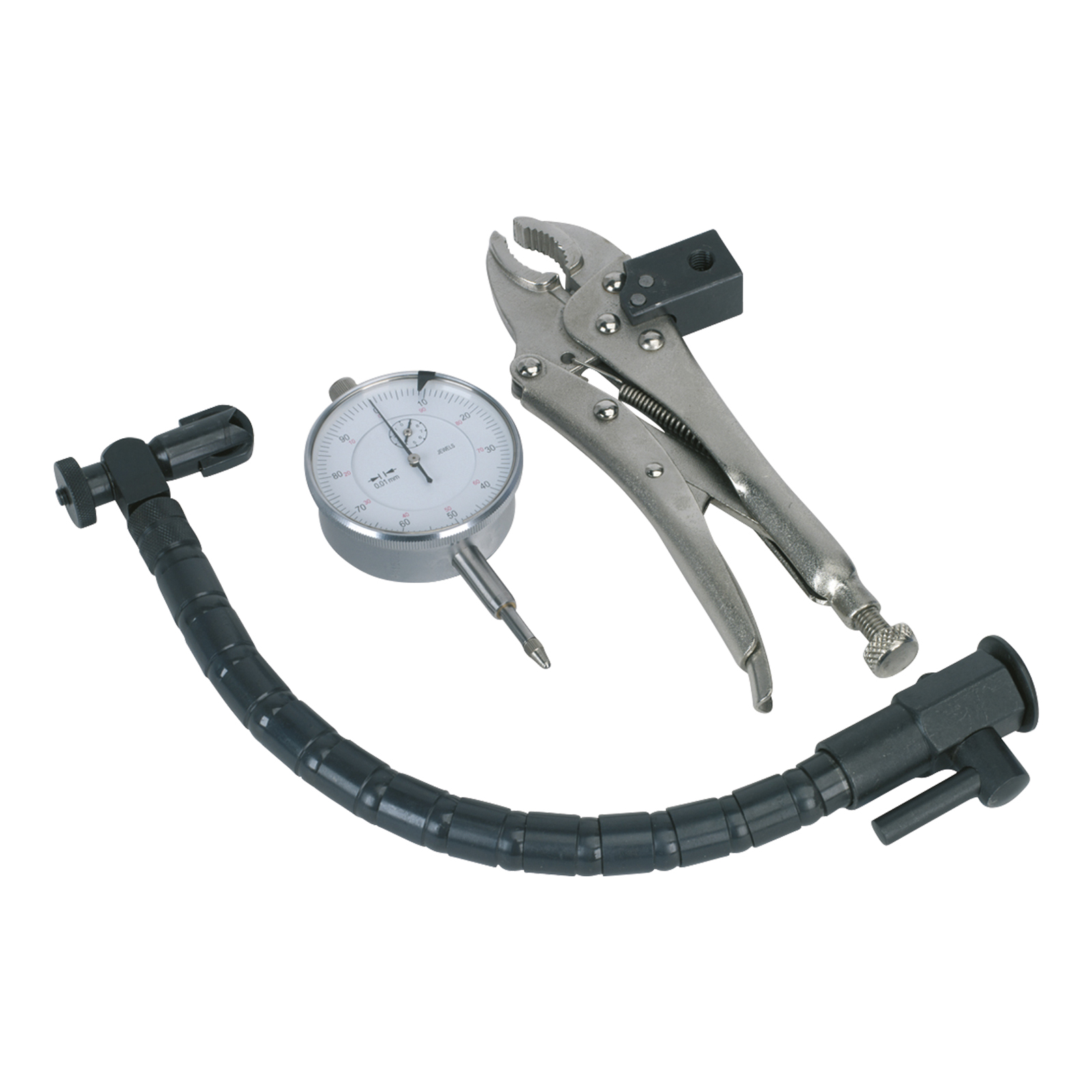

This kit is designed to allow a DTI gauge to be mounted securely against the brake disc in order to measure disc warp. The holding bracket is designed to allow the gauge to be secured in almost any position.
The kit allows for the measurement of run-out on almost any rotating component including brake disc run out, drive flange run out, flywheel run out, valve clearance for Mitsubishi and clutch clerance for VW etc. Also suitable for use on motorcycles.
- DTI gauge resolution: 0.1mm
- Total deflection: 10mm
| SKU | ET6084 |
| Barcode # | 9321280371316 |
| Brand | Automotive |
| Product weight | 1.5300kg |
| Shipping weight | 1.530000kg |
12 Months
