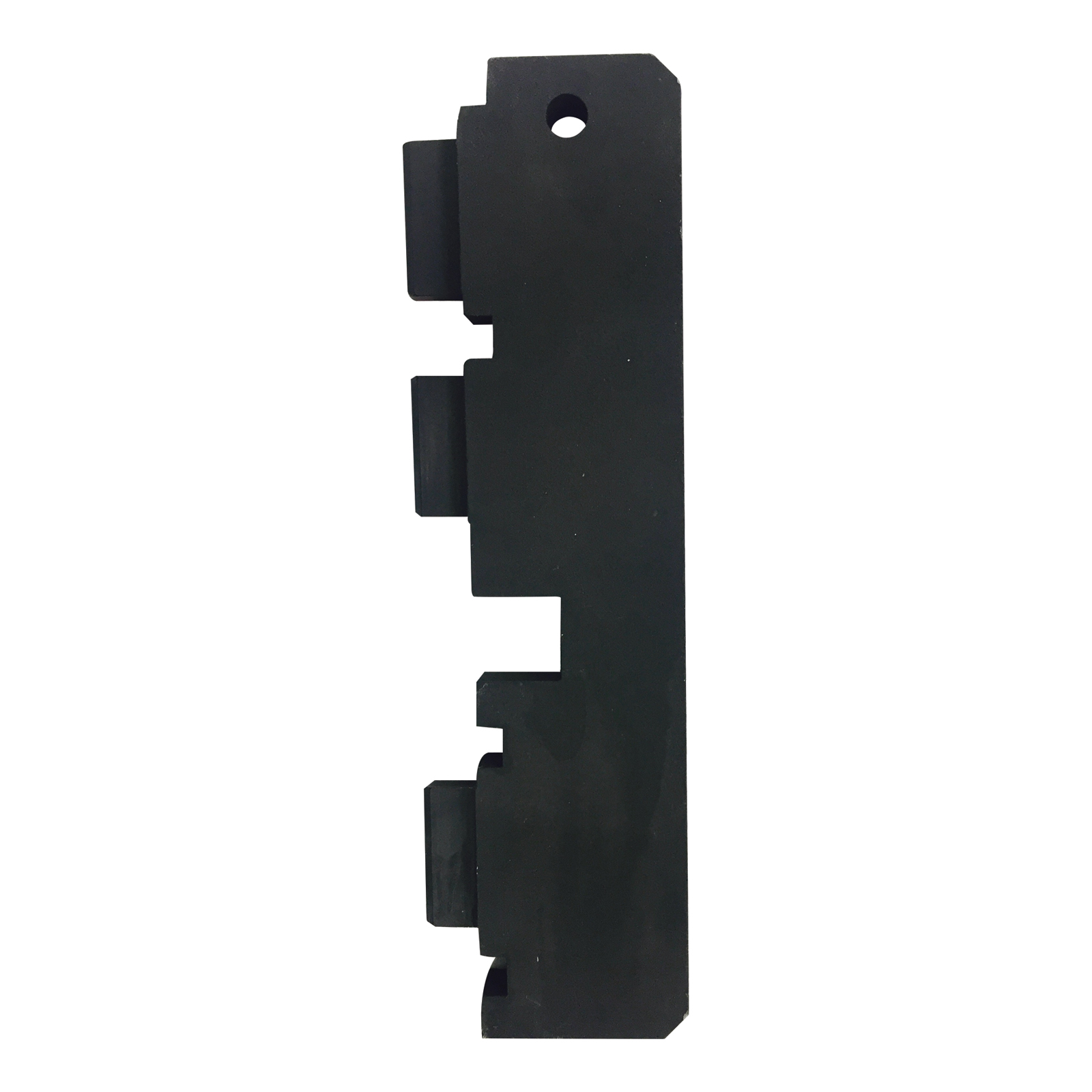

Locks camshafts in their timed position, when there is a need to remove the variable valve timing pulleys.
Use with ET0512.
- Applications: Ford Fiesta | Focus, Volvo V40 | S60 | V60
- Engine codes: Ford HXDA | HXJA | JQMA | PNDA | U5JA, Volvo B4164T
- OEM Equiv: 303-1552
Engine Code(s)
B4164T, HXDA, HXJA, HXJB, JQMA, PNDA, U5JA, M9DD
Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
Volvo | S60 | B4164T | 1.6L | 2011 | 2015 | |
Volvo | V60 | B4164T | 1.6L | 2011 | 2015 | |
Volvo | V40 | B4164T | 1.6L | 2013 | 2015 | |
Volvo | S60 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | S80 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | V60 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | V70 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | S60 | B4164T3 | 1.6L | 2011 | 2011 | |
Volvo | V60 | B4164T3 | 1.6L | 2011 | 2011 | |
Volvo | S60 | T4 | B4164T4 | 1.6L | 2011 | 2015 |
Volvo | V60 | T4 | B4164T4 | 1.6L | 2011 | 2013 |
Ford | Focus | LV | HXDA | 1.6L | 2008 | 2011 |
Ford | Fiesta | WS | HXJA | 1.6L | 2009 | 2010 |
Ford | Fiesta | WT | HXJB | 1.6L | 2010 | 2013 |
Ford | Kuga | TF | JQMA | 1.6L | 2012 | 2015 |
Ford | Focus | LZ | M9DD | 1.5L | 2015 | 2019 |
Ford | Focus | LW | PNDA | 1.6L | 2011 | 2015 |
Ford | Fiesta | WT | U5JA | 1.6L | 2012 | 2013 |
303-1552
Engine Code(s)
B4164T, HXDA, HXJA, HXJB, JQMA, PNDA, U5JA, M9DD
Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
Volvo | S60 | B4164T | 1.6L | 2011 | 2015 | |
Volvo | V60 | B4164T | 1.6L | 2011 | 2015 | |
Volvo | V40 | B4164T | 1.6L | 2013 | 2015 | |
Volvo | S60 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | S80 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | V60 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | V70 | B4164T2 | 1.6L | 2011 | 2011 | |
Volvo | S60 | B4164T3 | 1.6L | 2011 | 2011 | |
Volvo | V60 | B4164T3 | 1.6L | 2011 | 2011 | |
Volvo | S60 | T4 | B4164T4 | 1.6L | 2011 | 2015 |
Volvo | V60 | T4 | B4164T4 | 1.6L | 2011 | 2013 |
Ford | Focus | LV | HXDA | 1.6L | 2008 | 2011 |
Ford | Fiesta | WS | HXJA | 1.6L | 2009 | 2010 |
Ford | Fiesta | WT | HXJB | 1.6L | 2010 | 2013 |
Ford | Kuga | TF | JQMA | 1.6L | 2012 | 2015 |
Ford | Focus | LZ | M9DD | 1.5L | 2015 | 2019 |
Ford | Focus | LW | PNDA | 1.6L | 2011 | 2015 |
Ford | Fiesta | WT | U5JA | 1.6L | 2012 | 2013 |
SKU | ET5412 |
Barcode # | 9321280379299 |
Brand | Automotive |
Product weight | 0.5500kg |
Shipping weight | 0.550000kg |
Vehicle Make | Ford |
Vehicle Make | Volvo |
12 Months
