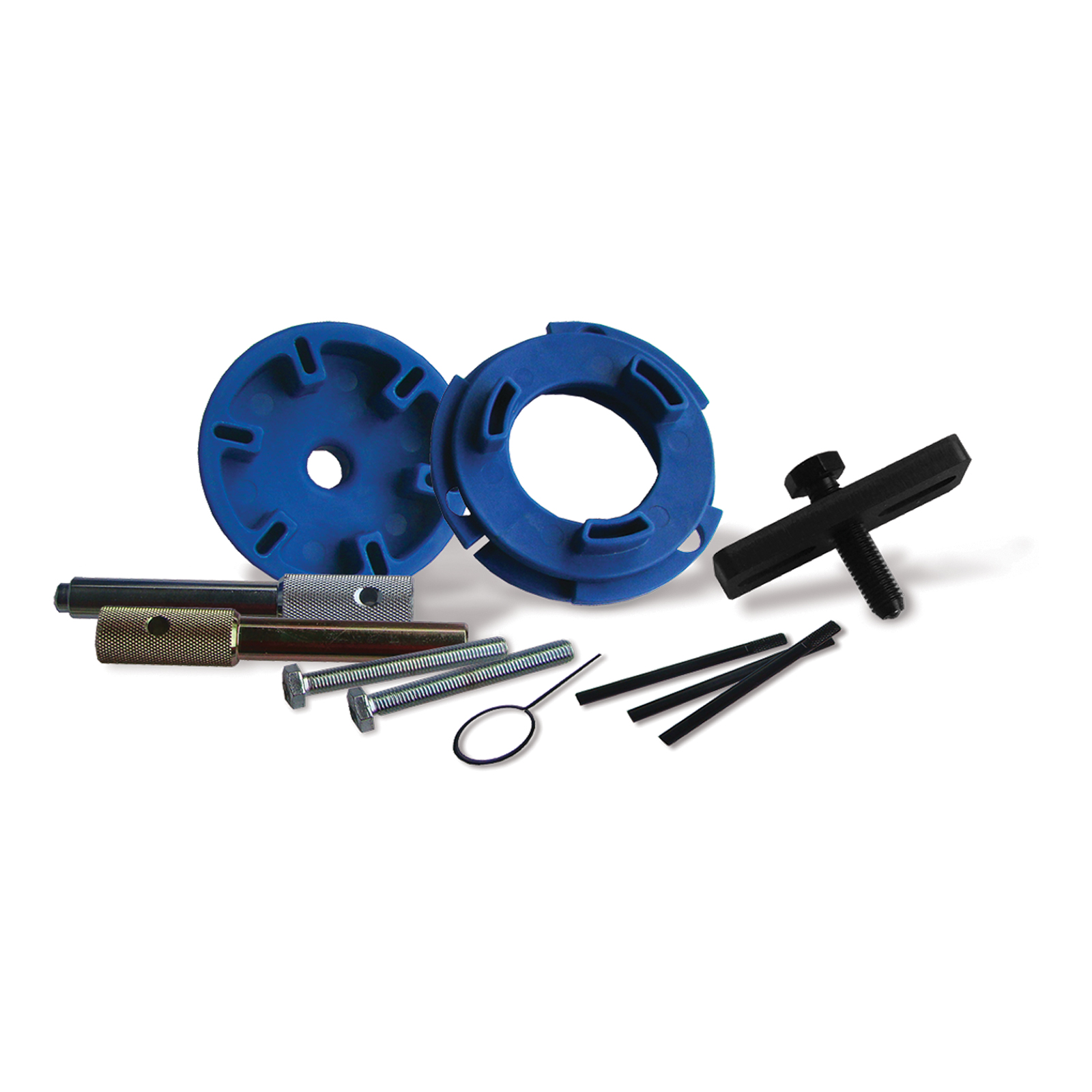

This timing tool kit is designed for 2.0L | 2.4L Ford Duratorq engines (including timing pump removal / installation). Suits engines built from 2002 - 2010.
The kit includes a chain tensioner, fuel pump cover removal tool, fuel pump sprocket locking tool, and camshaft / crankshaft sprocket alignment pins.
- Applications: Ford Transit VH VJ VM | Jaguar X-Type X400
- Engine codes: BG | D2FA | FXFA | H9FA | H9FB
- OEM Equiv: 303-249 | 303-675 | 303-679A | 303-682 | 303-698 | 303-1151
| SKU | Description | OEM Equivalent Codes |
|---|---|---|
| ET1311 |
Ford Diesel Pump Sprocket Puller |
303-249 303-249-01 |
| ET1287-5 |
Ford Crankshaft Locking Tool |
303-698 21-251 303-675 0198-A |
| ET1004L |
Ford Injection Pump Alignment Tool |
303-1151 |
| TT3675 |
Flywheel Locking Pin |
303-675 |
| TT2710 |
Sprocket Locking Pins (3x) |
|
| TT2720 |
Chain Tensioner Locking Pin | 2mm |
Engine Code(s)
H9FA, H9FB, D2FA, FXFA, BG
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Jaguar | X Type | X400 | BG | 2.2L | 2008 | 2010 |
| Audi | A4 | B7 | BGB | 2.0L | 2005 | 2008 |
| Volkswagen | Phaeton | 3D | BGH | 4.2L | 2003 | 2013 |
| VAG | BGK | 4.2L | ||||
| Audi | A3 | 8P | BGU | 1.6L | 2004 | 2005 |
| Volkswagen | Caddy | 2K | BGU | 1.6L | 2004 | 2006 |
| Volkswagen | Golf | MK5 | BGU | 1.6L | 2004 | 2005 |
| Ford | Transit | VH | D2FA | 2.4L | 2001 | 2004 |
| Ford | Transit | VJ | FXFA | 2.4L | 2004 | 2006 |
| Ford | Transit | VH | H9FA | 2.4L | 2000 | 2006 |
| Ford | Transit | VJ | H9FA | 2.4L | 2004 | 2006 |
| Ford | Transit | VM | H9FB | 2.4L | 2006 | 2012 |
| SKU | ET1556A |
| Barcode # | 9321280358980 |
| Brand | Automotive |
| Product weight | 1.3900kg |
| Shipping weight | 1.390000kg |
| Vehicle Make | Ford |
| Vehicle Make | Jaguar |
12 Months
Calculate Shipping
Flat Rate Shipping - $16.50
$16.50 flat rate shipping
Manual handling charge for long packaged products - $35.00
Manual handling charge for long packaged products
