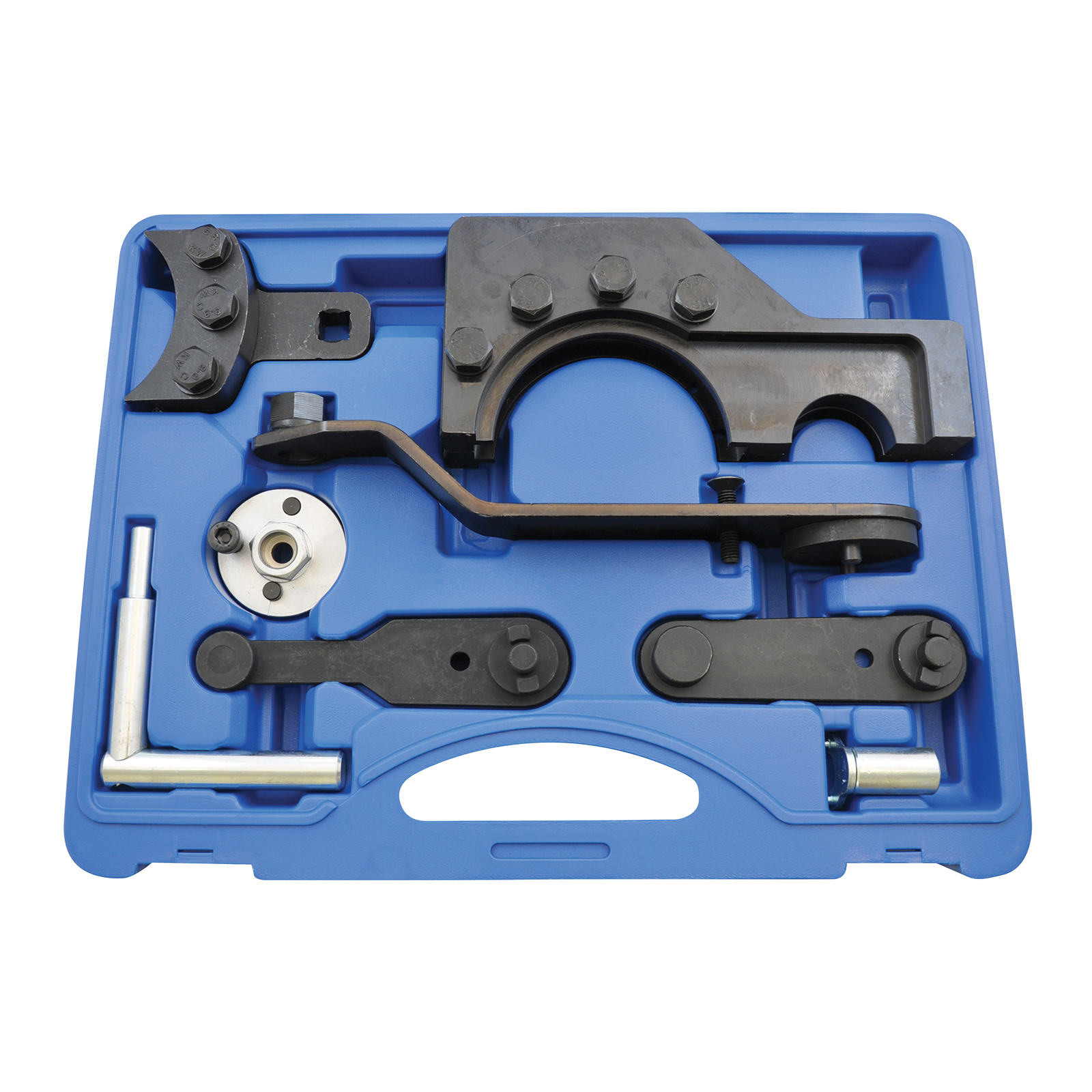

This timing kit is designed for gear driven engines which utilise the PD fuel injection system.

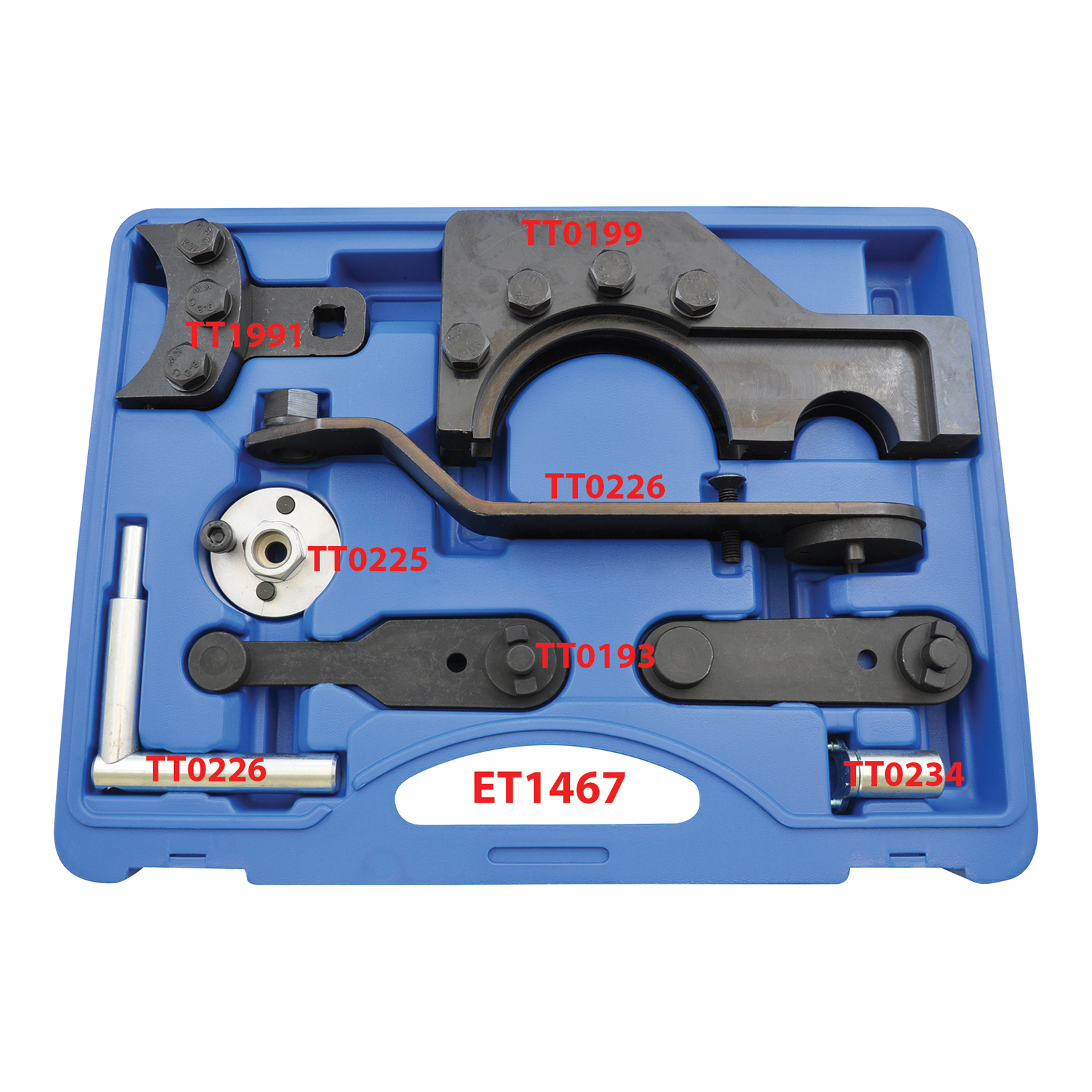

This kit contains camshaft locking tools, crankshaft locknig tools, a clamping device for servicing the camshaft wheels, a special rotating socket, and tensioner wrench.
- Applications: VW T5 (04-) | Touareg (03-) | Phaeton (03-)
- Engines: 5 cylinder / 10 cylinder 2.5L | 4.9L TDI PD
- OEM Equiv: T10193 | T10199 | T10199/1 | T10225 | T10226 | T10234
Engine Code(s)
BPC, AJS, AXD, AXE, AYH, BAC, BLE, BNZ, BPE, CBWA
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Volkswagen | Phaeton | 3D | AJS | 5.0L | 2004 | 2007 |
| Volkswagen | Transporter | T5 | AXD | 2.5L | 2004 | 2006 |
| Volkswagen | Multivan | T5 | AXE | 2.5L | 2005 | 2006 |
| Volkswagen | Caravelle | T5 | AXE | 2.5L | 2005 | 2006 |
| Volkswagen | Transporter | T5 | AXE | 2.5L | 2004 | 2006 |
| Volkswagen | Tourareg | 7L | AYH | 5.0L | 2004 | 2006 |
| Volkswagen | Touareg | 7L | BAC | 2.5L | 2004 | 2006 |
| Volkswagen | Touareg | 7L | BLE | 5.0L | 2006 | 2010 |
| Volkswagen | Caravelle | T5 | BNZ | 2.5L | 2006 | 2010 |
| Volkswagen | Kombi | T5 | BNZ | 2.5L | 2006 | 2009 |
| Volkswagen | Transporter | T6 | BNZ | 2.5L | 2006 | 2009 |
| Volkswagen | Caravelle | T5 | BPC | 2.5L | 2008 | 2010 |
| Volkswagen | Multivan | T5 | BPC | 2.5L | 2006 | 2010 |
| Volkswagen | Transporter | T5 | BPC | 2.5L | 2006 | 2010 |
| Volkswagen | Touareg | 7L | BPE | 2.5L | 2006 | 2009 |
| Volkswagen | Touareg | 7L | CBWA | 5.0L | 2007 | 2010 |
| SKU | ET1467 |
| Barcode # | 9321280327856 |
| Brand | Automotive |
| Product weight | 7.6200kg |
| Shipping weight | 7.620000kg |
| Vehicle Make | VAG |
12 Months
