An essential time saving tool for removing / installing the diesel injector sleeve on Volvo FM12 trucks.

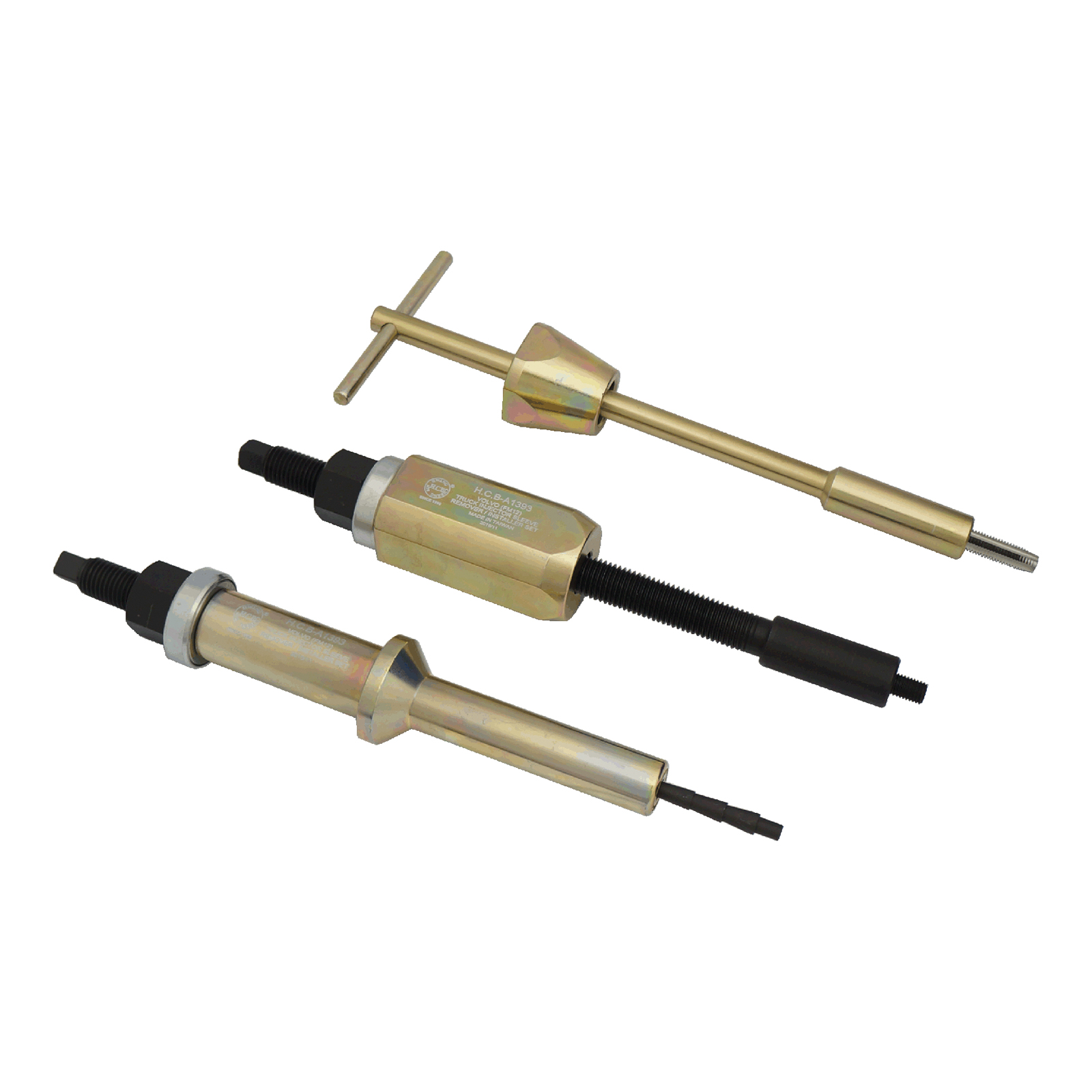

This kit contains three tools: a tool for tapping the injector sleeve head, a tool for removing the injector sleeve, and a tool for injecting the new sleeve.
- Application: FM12 trucks
- Use in conjunction with ET1350B
Engine Code(s)
D12C
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Volvo | FM12 | D12C | 12L | 1999 | 2002 |
9998252
9998253
9998688
| SKU | ET1393A |
| Barcode # | 9321280371156 |
| Brand | Automotive |
| Product weight | 0.3800kg |
| Shipping weight | 2.450000kg |
| Vehicle Make | Volvo |
12 Months
