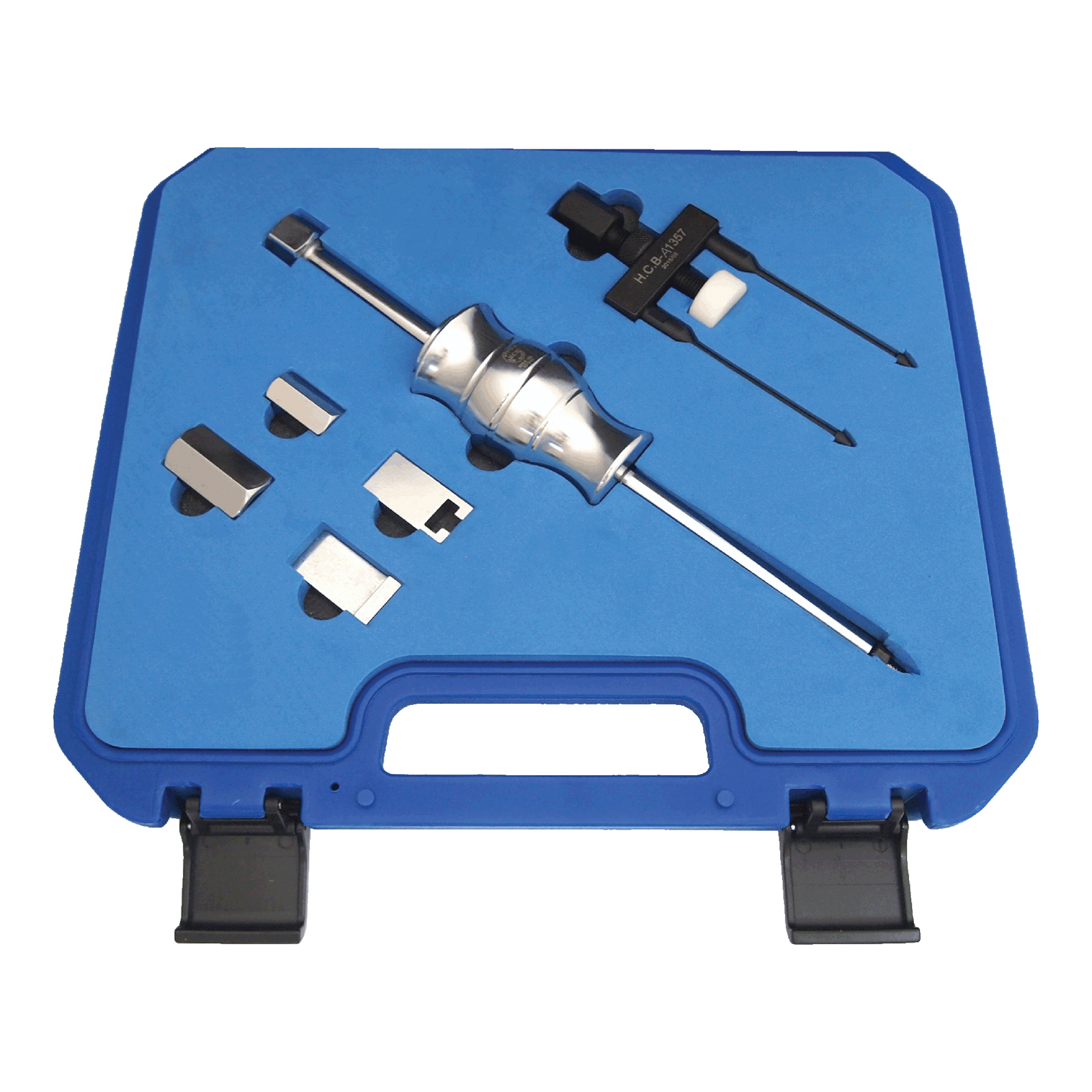

Master kit for removing seized diesel injectors from Volkswagen Group TDI PD engines.
Special two jaw design to grip the injector, and extract with the included slide hammer. Also includes offset / hook adaptors.
These tools are a major time saver, and reduce the risk of damage to the injectors or the solenoids. Injectors on these engines are less prone to seizures, but removal can often be difficult due to limited space. Please pay careful attention to the vehicle repair manual before attempting to remove / install injectors.
- Engine codes: VW ALH | 1Z
- OEM Equiv: T10055 | T10163 | T40055
- Applications: 1.4D | 1.9D (PD) | 2.0TDi (PD) 4V 2.5 TDi 2.5TDi (PD) | 2.8TDi (PD) 2.7D / 3.0TDi (PD)
Engine Code(s)
ALH, 1Z
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Volkswagen | Golf | MK 3 | 1Z | 1.9L | 1995 | 1997 |
| Skoda | Octavia | 1U | ALH | 1.9L | 2005 | 2006 |
T10133
| SKU | ET1357A |
| Barcode # | 9321280338012 |
| Brand | Automotive |
| Product weight | 2.4000kg |
| Shipping weight | 2.400000kg |
| Vehicle Make | VAG |
| Vehicle Make | BMW |
12 Months
