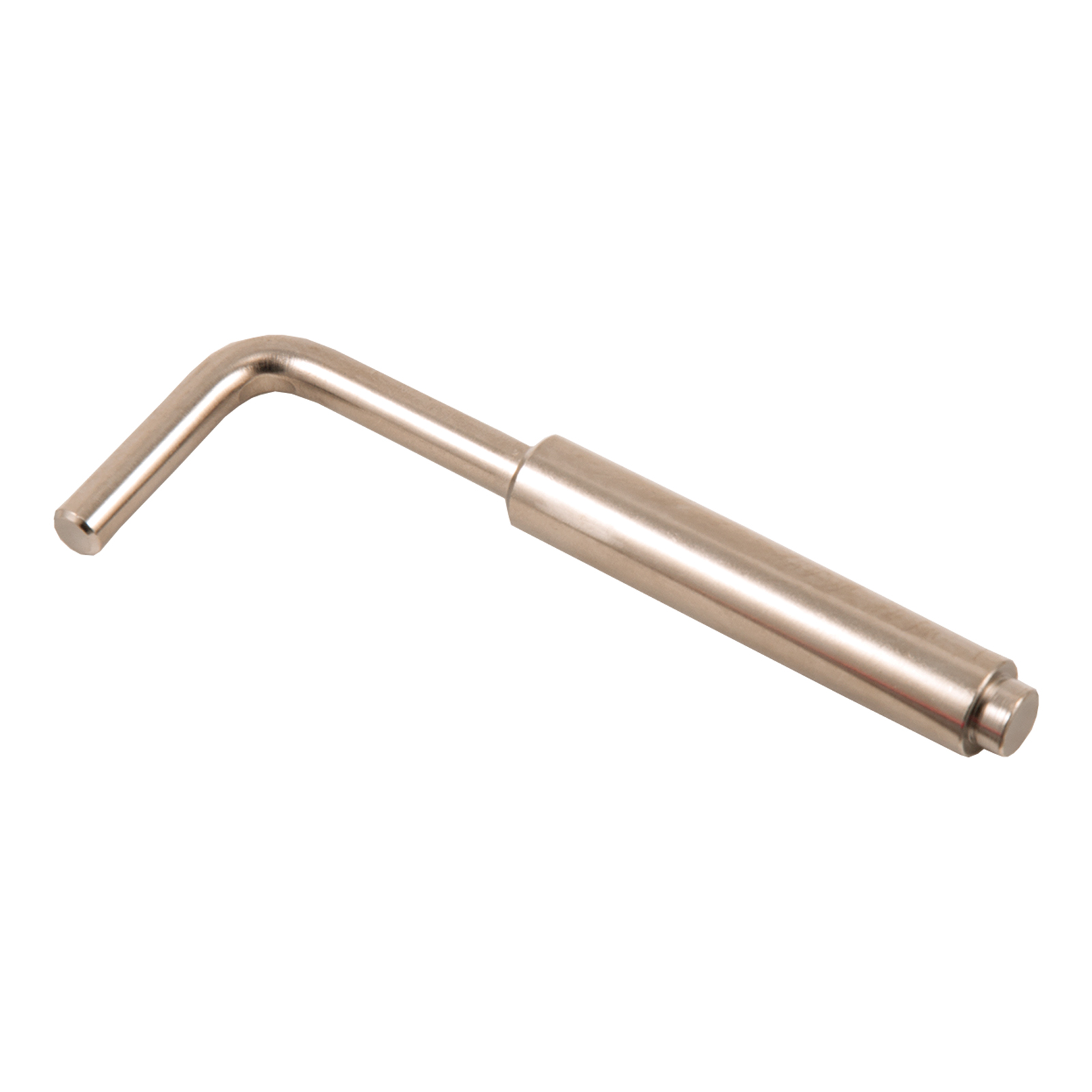

Flywheel locking pin for Ford Duratorq engines with common rail fuel injection. The pin locks the flywheel when changing the cam belt.
Applications include Mazda BT-50 | Ford Ranger | Ford Everest
- OEM Equiv: 0198-A | 303-675 | 303-698
- Engines codes: 3.2L P5AT | MZ-CD
Engine Code(s)
P5AT, H9FA, FXFA, H9FB, D0FA
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Ford | Transit | VH | D0FA | 2.4L | 2000 | 2004 |
| Ford | Transit | VJ | FXFA | 2.4L | 2004 | 2006 |
| Ford | Transit | VH | H9FA | 2.4L | 2000 | 2006 |
| Ford | Transit | VJ | H9FA | 2.4L | 2004 | 2006 |
| Ford | Transit | VM | H9FB | 2.4L | 2006 | 2012 |
| Ford | Everest | UA | P5AT | 3.2L | 2015 | |
| Ford | Ranger | PX | P5AT | 3.2L | 2011 | |
| Mazda | BT50 | UR | P5AT | 3.2L | 2015 | 2016 |
| Mazda | BT50 | UP | P5AT | 3.2L | 2011 | 2015 |
303-698
21-251
303-675
0198-A
Ford Timing Kit
This timing tool kit is designed to locate the crankshaft / flywheel to set the TDC sensor position when servicing the cam chain drive system. Applications include ECOnetic and HDT engines.
The L shaped locking key in this key is designed for manual transmissions. For automatic transmissions refer ET9423 (which is included in this kit).
- Applications: Transit 2.2 (06-) | Ranger (11-) Econetic & HDT engines | Mazda BT-50 (11-16)
- OEM Equiv: 0188H | 303-698 | 303-1587 (49 UN30315870)
Ford | Volvo | PSA Timing Kit
This kit contains specialised pins for locking flywheels, camshaft sprockets and aligning the crankshaft and fuel pump on a wide range of Duratorq engines.
- Includes special pins for 2.0L | 2.4L chain driven engines
Ford Timing Kit
This timing tool kit is designed for 2.0L | 2.4L Ford Duratorq engines (including timing pump removal / installation). Suits engines built from 2002 - 2010.
The kit includes a chain tensioner, fuel pump cover removal tool, fuel pump sprocket locking tool, and camshaft / crankshaft sprocket alignment pins.
- Applications: Ford Transit VH VJ VM | Jaguar X-Type X400
- Engine codes: BG | D2FA | FXFA | H9FA | H9FB
- OEM Equiv: 303-249 | 303-675 | 303-679A | 303-682 | 303-698 | 303-1151
Engine Code(s)
P5AT, H9FA, FXFA, H9FB, D0FA
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Ford | Transit | VH | D0FA | 2.4L | 2000 | 2004 |
| Ford | Transit | VJ | FXFA | 2.4L | 2004 | 2006 |
| Ford | Transit | VH | H9FA | 2.4L | 2000 | 2006 |
| Ford | Transit | VJ | H9FA | 2.4L | 2004 | 2006 |
| Ford | Transit | VM | H9FB | 2.4L | 2006 | 2012 |
| Ford | Everest | UA | P5AT | 3.2L | 2015 | |
| Ford | Ranger | PX | P5AT | 3.2L | 2011 | |
| Mazda | BT50 | UR | P5AT | 3.2L | 2015 | 2016 |
| Mazda | BT50 | UP | P5AT | 3.2L | 2011 | 2015 |
| SKU | ET1287-5 |
| Barcode # | 9321280350380 |
| Brand | Automotive |
| Product weight | 0.1290kg |
| Shipping weight | 0.129000kg |
| Vehicle Make | Ford |
12 Months
