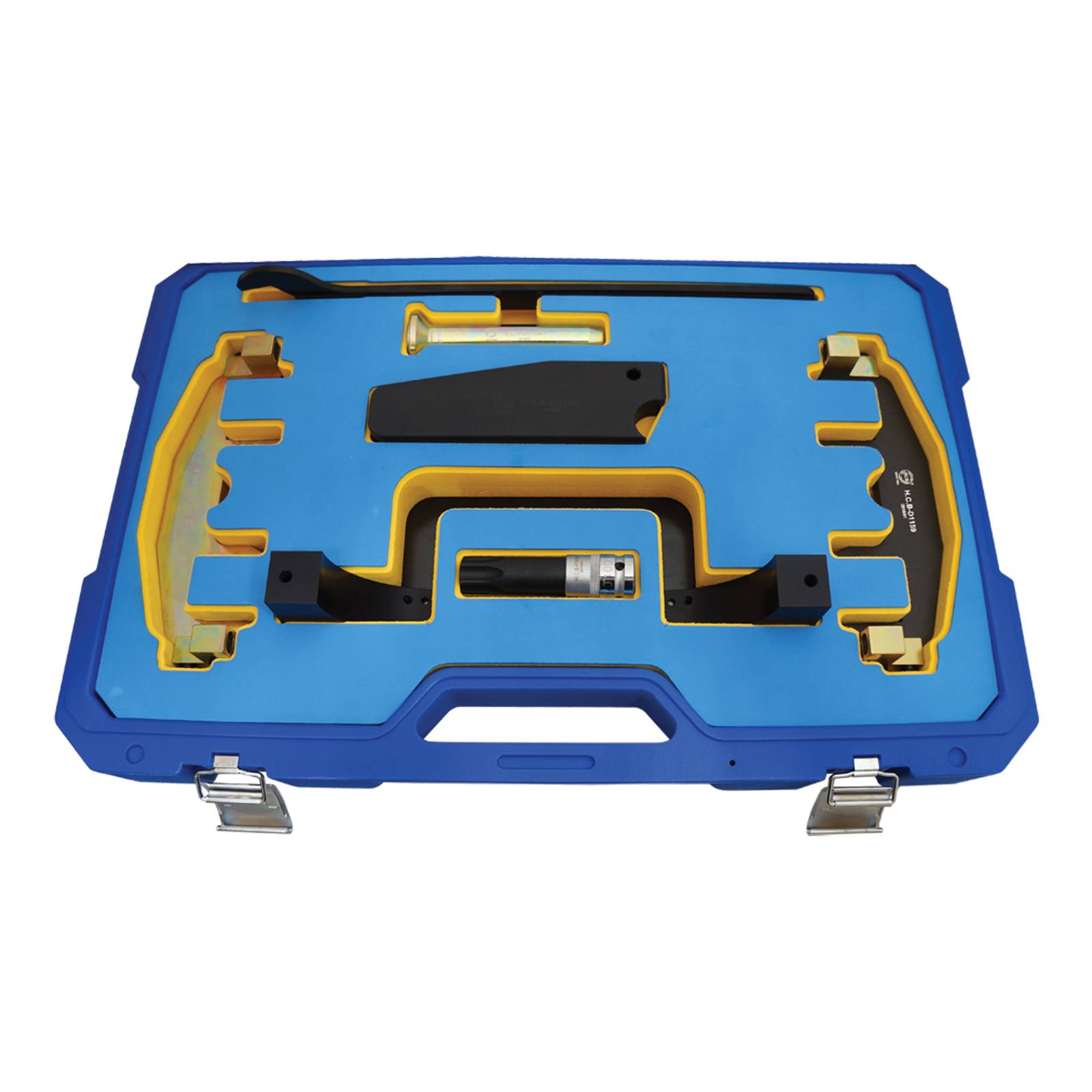

This kit is designed for Mercedes vehicles fitted with chain driven 1.8L petrol engines (either single / double chain).
These engines are used across the Mercedes range including C Class, CLC, CLK, E Class and SLK as well as Sprinter vans from 2002 -2015. This kit includes the cam locking tool required when removing camshaft pulleys.
For correct chain link peening, our kit # ET1293D may be required.
- 1.8L petrol chain driven engines
- Includes T100 Torx Sec bit (ET1436A)
- Engine code: M271
| SKU | Description | OEM Equivalent Codes |
|---|---|---|
| ET1436A |
Mercedes Front Camshaft Gear Socket |
27158900100009 |
| TT6100 |
Camshaft Clamping Assembly |
270 589 006 1 00 |
| ET1022AA |
BMW Viscous Fan Hub Nut Wrench |
11 5 040 |
| TT1500 |
Cam Chain Tensioner Drift |
271589001500 |
| TT0140 |
Cam Chain Retaining Bridge |
271589014000 |
| TT3100 |
Cam Tensioner Wedge |
271589003100 |
| ET1159D-06 |
Camshaft Clamping Tool |
Engine Code(s)
M271.860, M271.950, M271.955, M271.951, M271.946, M271.940, M271.948, M271.820, M271.952, M271.944, M271.954, M271.861, M271.957, M271.941, M271.956
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Mercedes | C180 | C204 | M271.820 | 1.8L | 2011 | 2013 |
| Mercedes | C180 | W204 | M271.820 | 1.8L | 2011 | 2013 |
| Mercedes | C180 | S204 | M271.820 | 1.8L | 2011 | 2013 |
| Mercedes | C200 | W204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C200 | S204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C250 | W204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C250 | S204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C250 | C204 | M271.860 | 1.8L | 2011 | 2016 |
| Mercedes | E200 | W212 | M271.860 | 1.8L | 2012 | 2013 |
| Mercedes | E250 | S212 | M271.860 | 1.8L | 2009 | 2013 |
| Mercedes | E250 | A207 | M271.860 | 1.8L | 2010 | 2013 |
| Mercedes | SLK200 | R172 | M271.861 | 1.8L | 2011 | 2015 |
| Mercedes | SLK250 | R172 | M271.861 | 1.8L | 2012 | |
| Mercedes | C200 | CL203 | M271.940 | 1.8L | 2002 | 2007 |
| Mercedes | C200 | W203 | M271.940 | 1.8L | 2002 | 2007 |
| Mercedes | C200 | S203 | M271.940 | 1.8L | 2002 | 2007 |
| Mercedes | CLK200K | C209 | M271.940 | 1.8L | 2004 | 2007 |
| Mercedes | CLK200K | A209 | M271.940 | 1.8L | 2005 | 2007 |
| Mercedes | E200K | W211 | M271.941 | 1.8L | 2004 | 2006 |
| Mercedes | SLK200 | R171 | M271.944 | 1.8L | 2004 | 2008 |
| Mercedes | C180 | CL203 | M271.946 | 1.8L | 2002 | 2008 |
| Mercedes | C180 | W203 | M271.946 | 1.8L | 2002 | 2007 |
| Mercedes | C180 | S203 | M271.946 | 1.8L | 2002 | 2005 |
| Mercedes | C230K | CL203 | M271.948 | 1.8L | 2002 | 2005 |
| Mercedes | C200 | W204 | M271.950 | 1.8L | 2007 | 2010 |
| Mercedes | C200 | S204 | M271.950 | 1.8L | 2008 | 2010 |
| Mercedes | Sprinter | 516 | M271.951 | 1.8L | 2010 | 2013 |
| Mercedes | Sprinter | 316NGT | M271.951 | 1.8L | 2010 | 2013 |
| Mercedes | C180 | W204 | M271.952 | 1.8L | 2007 | 2014 |
| Mercedes | SLK200 | R171 | M271.954 | 1.8L | 2008 | 2011 |
| Mercedes | CLK200K | A209 | M271.955 | 1.8L | 2007 | 2010 |
| Mercedes | CLK200K | C209 | M271.955 | 1.8L | 2007 | 2010 |
| Mercedes | E200K | W211 | M271.956 | 1.8L | 2006 | 2009 |
| Mercedes | CLC200 | CL203 | M271.957 | 1.8L | 2008 | 2011 |
| SKU | ET1159D |
| Barcode # | 9321280384903 |
| Brand | Automotive |
| Product weight | 6.2800kg |
| Shipping weight | 8.920000kg |
| Vehicle Make | Mercedes |
12 Months
Calculate Shipping
Flat Rate Shipping - $16.50
$16.50 flat rate shipping
Manual handling charge for long packaged products - $35.00
Manual handling charge for long packaged products
