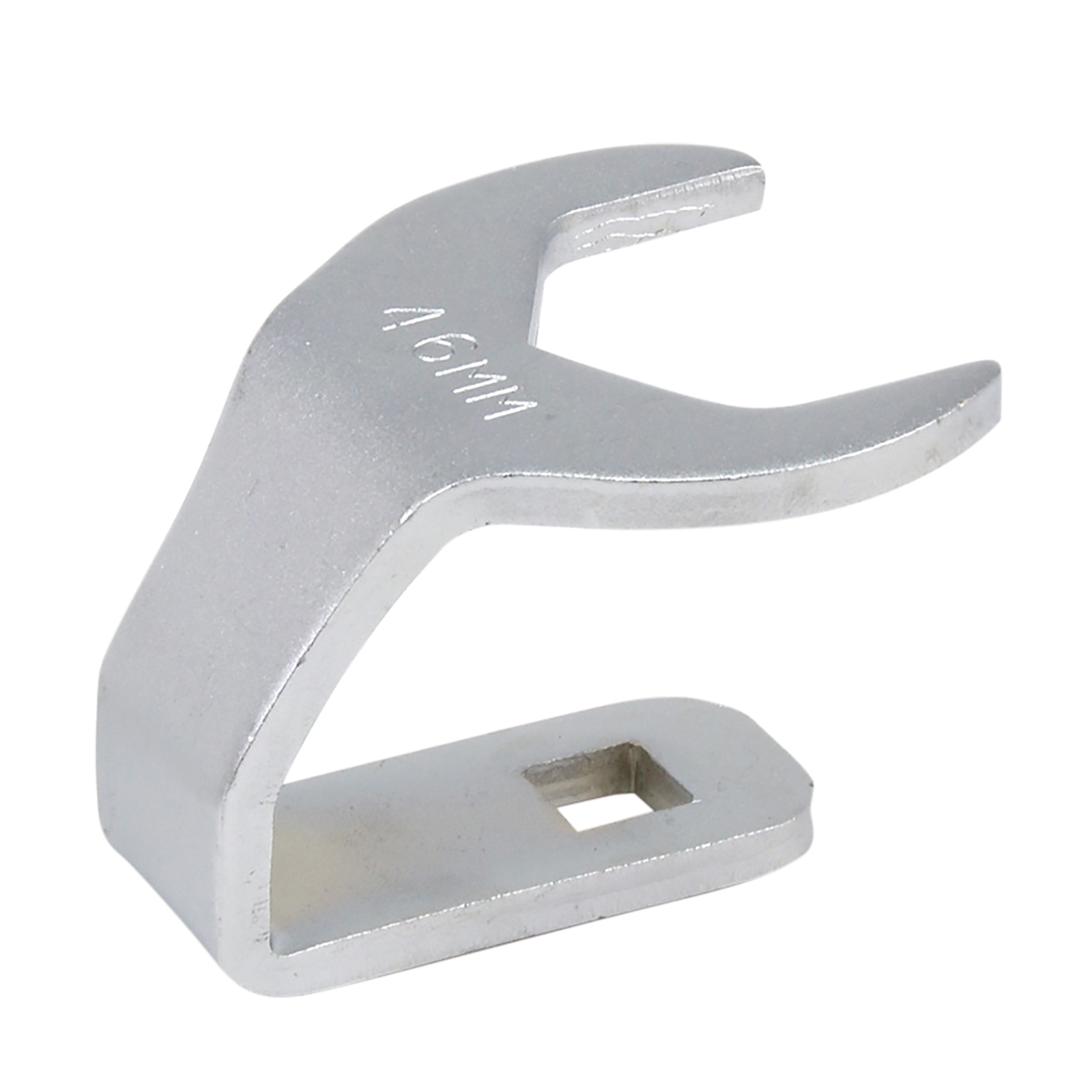

Adjusts the timing belt tension by turning water pump counter clockwise to relieve belt tension and vice versa. Due to the shape of the water pump / limited access this makes a difficult task easy.
- 46mm
- 1/2" Sq Drv
- Applications: 1.8L | 2.0L Astra F (91-97), Calibra (91-97). Also Holden Camira, Daewoo Espero, Nissan Pulsar N13
Engine Code(s)
C18NZ, C20NE
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Holden | Vectra | A | C18NZ | 1.8L | 1990 | 1995 |
| Holden | Calibra | YE | C20NE | 2.0L | 1991 | 1995 |
| Holden | Astra | F | C20NE | 2.0L | 1993 | 1997 |
| Holden | Vectra | A | C20NE | 2.0L | 1988 | 1995 |
KM 409A
KM 472
Master Timing Kit
Master timing kit containing a wide range of pulley holding / pulling tools for popular Honda, Mazda, Hyundai, Subaru and Daewoo vehicles.
Holden Timing Kit
A comprehensive kit for locking the camshaft / crankshaft, and removal of fuel injection pumps, water pumps and changing the timing belt on many popular GM vehicles.
- Applications: Diesel 1.3CDTi 16v | 1.9CDTi | 2.0DTi | 2.2 Dti
Engine Code(s)
C18NZ, C20NE
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Holden | Vectra | A | C18NZ | 1.8L | 1990 | 1995 |
| Holden | Calibra | YE | C20NE | 2.0L | 1991 | 1995 |
| Holden | Astra | F | C20NE | 2.0L | 1993 | 1997 |
| Holden | Vectra | A | C20NE | 2.0L | 1988 | 1995 |
| SKU | ET1023B |
| Barcode # | 9321280327061 |
| Brand | Automotive |
| Product weight | 0.2800kg |
| Shipping weight | 0.290000kg |
| Vehicle Make | GM |
12 Months
