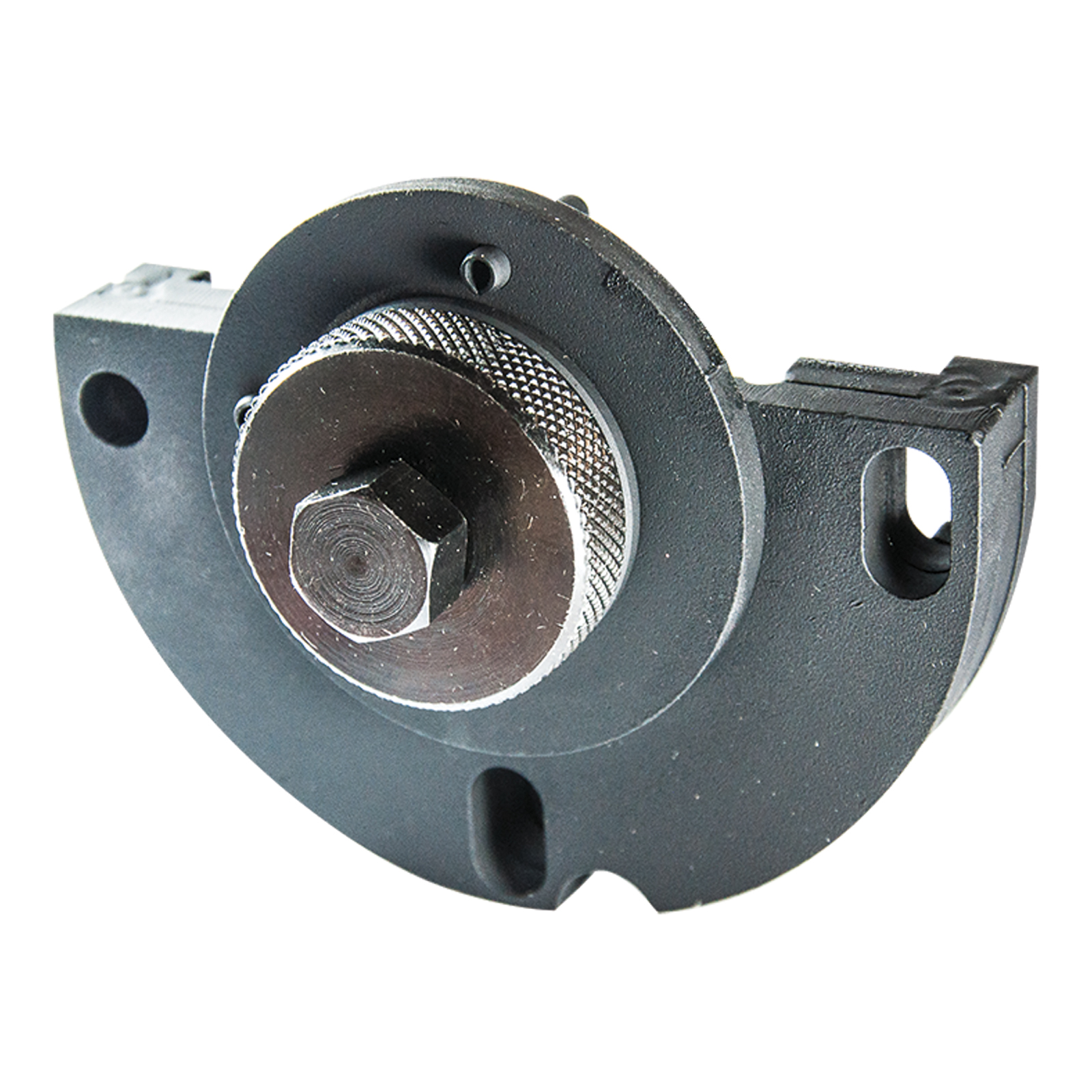

This tool holds the timing chain in place when removing the high pressure pump on Hyundai 2.5L diesel engines. An essential repair tool.
Do not remove the timing cover when using this tool. This needs to remain in place to bolt this tool onto.
- Engine code: D4CB
- Applications: Hyundai iLoad (08-) | iMax (08-), Kia K2500 (12-)
- OEM Equiv: 09331-4A000
Engine Code(s)
D4CB
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Hyundai | iLoad | TQ | D4CB | 2.5L | 2008 | |
| Hyundai | iMax | TQ | D4CB | 2.5L | 2008 | |
| Kia | K2500 | D4CB | 2.5L | 2012 | ||
| Hyundai | H1 | TQ | D4CB | 2.5L | 2007 | 2012 |
| Kia | Sorrento | BL | D4CB | 2.5L | 2007 | 2009 |
09331-4A000
| SKU | ET0823 |
| Barcode # | 9321280369603 |
| Brand | Automotive |
| Product weight | 1.1900kg |
| Shipping weight | 1.190000kg |
| Vehicle Make | Hyundai |
12 Months
