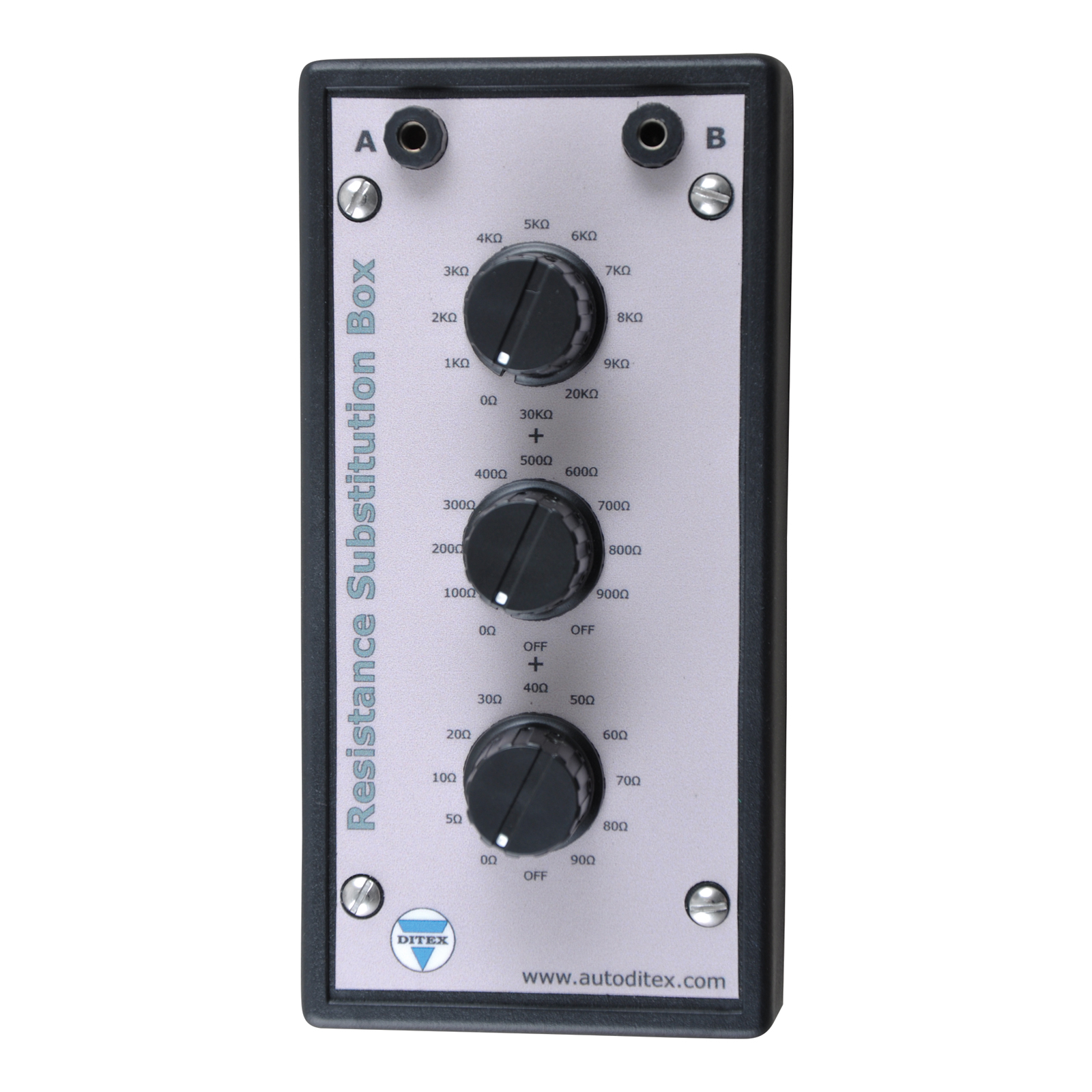

Designed for simulation, inspection and testing applications of all car resistor types.
This unit contains resistors of many different resistance values, with 3 mechanical switches allowing any one of various discrete resistances offered by the box to be dialed in. This automotive type box offers a convenient way of selecting and quickly changing a resistance, without needing to attach resistors one by one or even stock each value.
- You can choose between a wide range of resistance values from 0 ohm to 30,000 ohm (30Kohm) with a resolution of 5 ohm.
SKU | ET0092 |
Barcode # | 9321280400313 |
Brand | CarScope |
Product weight | 0.3400kg |
Shipping weight | 0.340000kg |
12 Months
